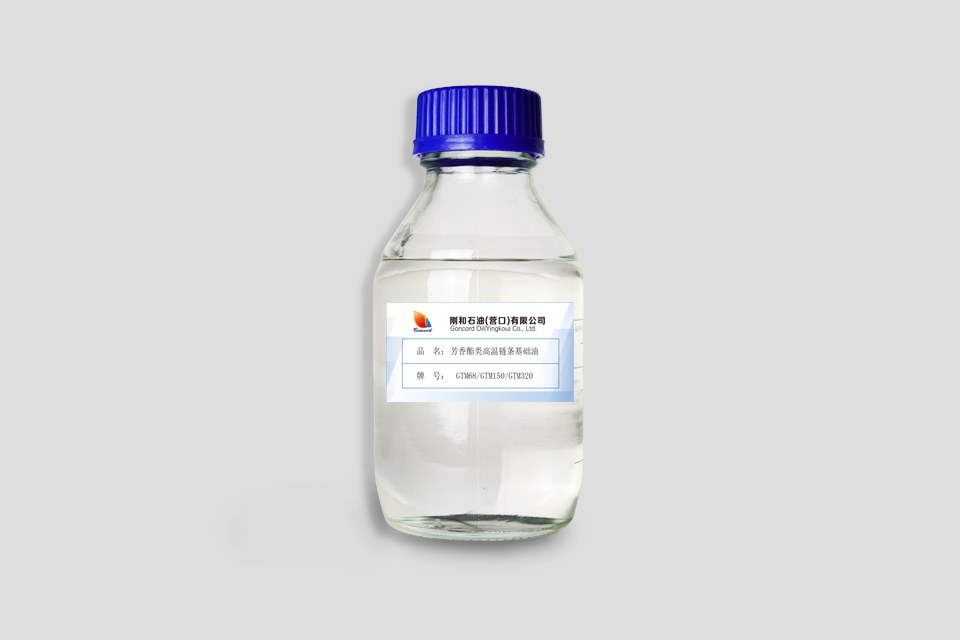

GTM68, GTM150, GTM320 High Performance Ester Chain Oil
Product introduction
Inadequate chain oil performance will lead to machine downtime, frequent maintenance, reduced energy efficiency, poor oil-water separation, emulsification, and even chain deformation and breakage. High quality, high performance synthetic ester provides suitable lubrication of chains and ratchets, excellent thermal and oxidative stability, and great adhesion performance. Through a series of rigorous tests, the following greases are recommended for use in chain oil applications.
Product Features:
● Low evaporation rate > reduced consumption
● Sediment Control > Reduced Maintenance Costs
● Friction Reduction > Energy Savings
● High Flashpoint > Improving Fire Safety
Recommended Solutions for High Temperature Chain
Polyol ester 50%; Aromatic ester 48.49%; Polyisobutylene 0.5%; Irgalube 349 0.5%; Irganox L06 0.6%; Nasul 707 0.4%; Vanlube SS 0.4%
Aromatic Ester High Temperature Chain Base Oil
| Item | GTM 68 | GTM 150 | GTM 320 |
|---|---|---|---|
| Density（20°C）kg/m³ | 0.975 | 0.976 | 0.958 |
| Kinematic viscosity，100°C mm2/s | 9.6 | 13.1 | 20.17 |
| Kinematic viscosity，40°C mm2/s | 71 | 143 | 302.8 |
| Viscosity index | 116 | 83 | 74 |
| Flash point °C | 265 | 265 | 265 |
| Pour point /°C | -45 | -33 | -24 |
Polyol Ester High Temperature Chain Base Oil
| Product | Density(20°C)kg/m³ | Kinematic viscosity，100°C m㎡/s | Kinematic viscosity，40°C m㎡/s | Viscosity index | Flash point (open)℃ | Tilt point/℃ | NOACK Volatile matter value 250℃/1hr，% W/W |
|---|---|---|---|---|---|---|---|
| G28100 | 0.965 | 12.76 | 101.7 | 120 | 290 | -40 | 0.9 |
| G28150 | 0.97 | 17.94 | 165.0 | 120 | 318 | -42 | 0.77 |
| G28220 | 0.967 | 19.09 | 237.1 | 91 | 310 | -27 | 0.64 |
| G28320 | 0.975 | 26.48 | 311.5 | 112 | 308 | -23 | 0.45 |
| G28800 | 0.988 | 44.12 | 827.9 | 95 | 304 | -15 | 0.66 |
