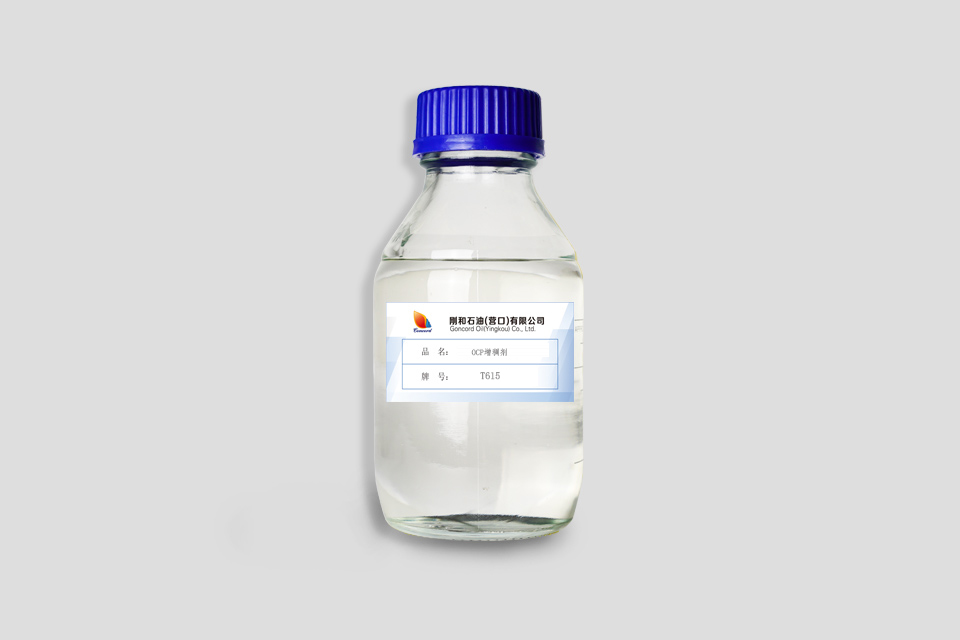

Synthetic ester-type transformer insulating oil

Product introduction

Synthetic ester-type transformer insulating oil is synthesized from various saturated fatty acids and pentaerythritol under special conditions. It features excellent lubricity, low expansion coefficient, outstanding insulation properties and high breakdown voltage. It also has outstanding flame retardancy, extremely high thermal oxidation stability and ultra-low moisture content. It can be widely applied in power transformers up to 238kW, traction transformers, pole-mounted transformers, transformers with branch switches, etc.

Characteristics and features

· Excellent low-temperature performance

· High flash point and high ignition point

· High breakdown voltage

· Outstanding flame retardancy

· Low coefficient of thermal expansion

· Good biodegradability



Analyze the project Quality indicators Typical result Analytical method
Appearance Transparent and free of mechanical impurities Transparent and free of mechanical impurities Visual inspection
Density(20℃),Kg/dm³ ≤1000 969.5 SH/T0604-2000
Kinematic viscosity,m㎡/s
40℃
-20℃

≤35
3000

29.22
1350
GB/T265-1998
Tilt point℃ ≤-45 -56  GB/T3535-2006
Flash point ℃ (closed) ≥250 253 GB/T261-2008
Ignition point, ≥300 312 GB/T267-1998
Acid value(mgKOH/g)
≤0.03
0.015 NB/SH/T0836-2010
Corrosive sulfur Non-corrosive Non-corrosive SH/T0804-2007
Oxidation stability,164h
Acid value(mgKOH/g)
Sedimentation,%(m/m)

≤0.3
≤0.01

0.09
0.0055
IEC61125 C method
Breakdown voltage (factory with a 2.5mm spacing) ≥45 62 GB/T507-2002
Water-soluble esters or bases no no GB/T259-1998
Dielectric loss factor(90℃) ≤0.03 0.01 GB/T5654-2007
Volume resistivity(90℃)G Ωm ≥2 23.5 GB/5654-2007
Moisture,mg/kg ≤200 40.3 GB/T7600-2014
Refractive index(20℃) - 1.454 SH/T0724
Crystallization - No crystallization GB/T7533



*. Complies with DIN EN 61099-2020 standard
